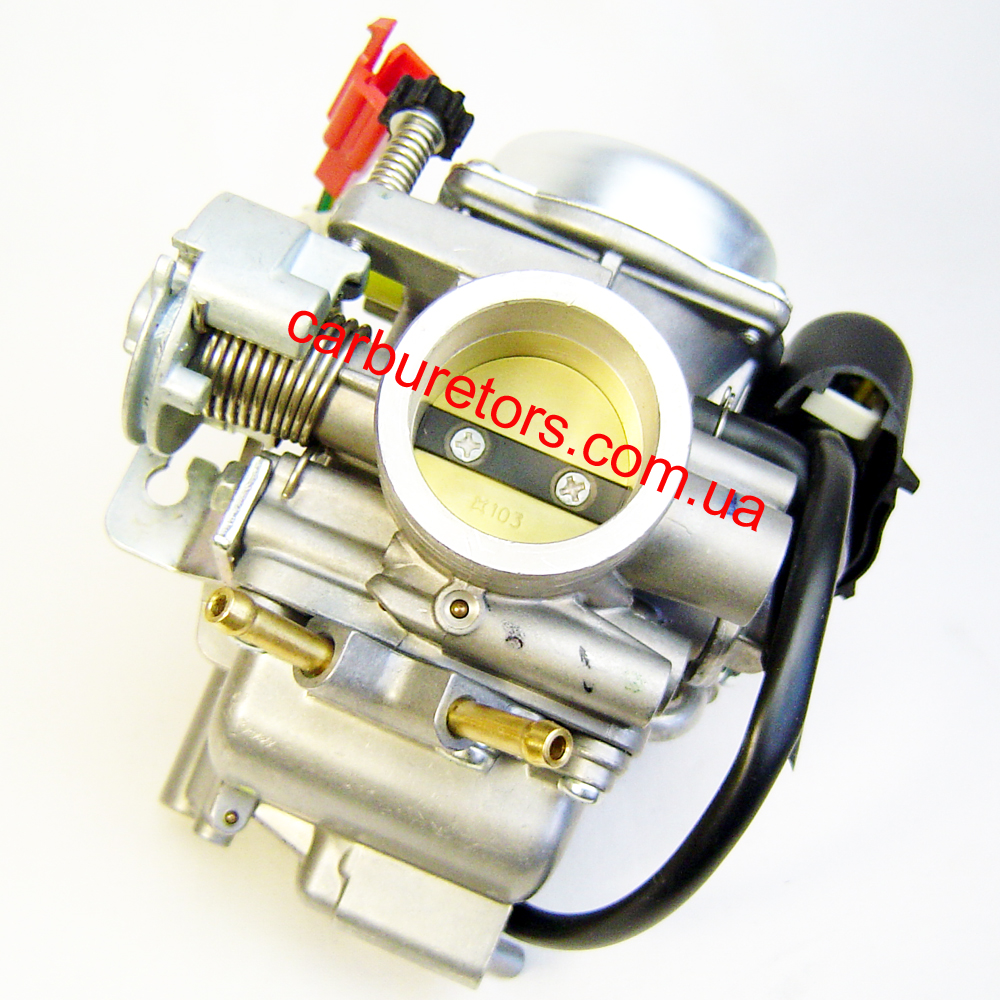

Carburetor Keihin CVK 302A, electric choke

Vacuum piston valve carburetor (CV) Keihin for 4T engines, 1 cylinder 180-250cc.

Good solution for scooter, motorcycle, atv, utv.

Compatible for many scooters and motorcycles with specification CVK 302A, CM128203 (PIAGGIO):

PIAGGIO X8 125 LEADER 4T LC ´00-´07

VESPA GT 125 ZAPM31100 4T LC `03-

Also compatible with specification CVK 301E, CM128201 (PIAGGIO) but need modification intake system for stabile work and best result:

APRILIA Atlantic 250 M237M 4T LC ´03-´08

APRILIA Scarabeo 200 PIAGGIO 4T LC ´03-´06

DERBI GP1 250 (euro 2-3) 250 4T LC ´06-

GILERA DNA 180 ZAPM26 4T LC ´01-´03

GILERA Runner VXR 200 ZAPM46 4T LC `00-´05

GILERA Runner VXR 200 ZAPM46 4T LC ´06-

GILERA Runner VXR ST 200 ZAPM46 4T LC

PIAGGIO Beverly 200 LEADER 4T LC ´02-´06

PIAGGIO Beverly (euro 1-2) 250 M285M 4T LC

PIAGGIO X8 200 LEADER 4T LC ´04-´06

PIAGGIO X9 200 LEADER 4T LC ´04-

PIAGGIO X9 Evolution 250 M237M 4T LC ´04-

VESPA GT 200 ZAPM31200 4T LC `03-

VESPA GT L 200 ZAPM31200 4T LC `03-

Angle for carburetor installation on the engine 0-15^°. Angle 20^” or more - engine work can be unstable.

Measurements L-W-H: 113,6 x 128 x 133

Inlet, air-box

external, mm - 55

internal, mm - 48

Outlet, engine

external, mm - 40

internal, mm - 30,8
